Thanks all. Please note the following:
1) Entry to KYN ELS is through a neutral zone and locos entering have to change from AC zone to DC zone.

2) Eventhough the ELS is under DC traction, Seperate test lines exists for AC locos & DC Locos.

3) Only WCAM/WCAG can enter live inside the shed.

4) Pure DC Locos -WCG2 & Pure AC Locos WAG5/7/WAM4 have to be necessarily towed into the shed by either WCAM/WCAG or diesel locos.

5)WCAM/WCAG would be completely under AC territory outside ELS & while entering ELS gate they have to change from AC to DC, and will probably go into DC test / assembly lines.

Posted by Vijay Aravamudhan (guest) on 2009 May 20 16:04:06 +0000

hay the main question is how WCG-2's will enter the loco shed..........
they must be shunted by another loco to their old house...
& the sole serviving DC shed of IR in it's last days of life..
very sad!!!!

Posted by ashwin soman (guest) on 2009 May 20 14:04:58 +0000

A superb effort. Builds a clear picture for someone like me who cannot check the mailing list every day.Thanks!

Posted by Mohan Bhuyan (guest) on 2009 May 20 09:24:45 +0000

Question: Approach to Kalyanloco shed now is thru 25 KV AC teritory. So do all WCAM-X and WCAG-X guys going to shed from DC teritorry change from DC to AC and back to DC (shed itself is DC) ? Or they and other WAGs are hauled by seperate diesel shunters there ?

Posted by mandargb (guest) on 2009 May 20 06:35:35 +0000

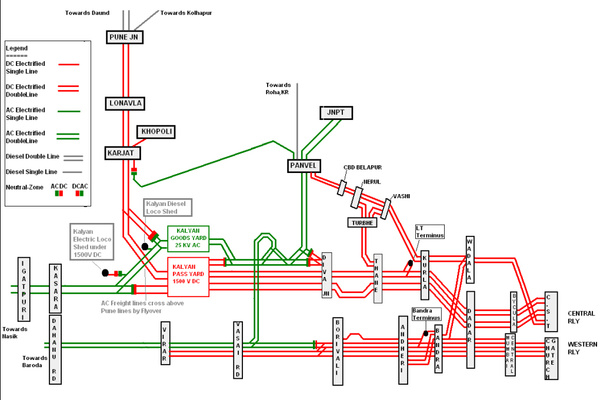

Grt work Vijay. This diagram will help me locate the new neutral zone easier

Posted by Arzan Kotval on 2009 May 20 04:40:33 +0000

Thanks Jitendra Sir & Akshay for the revised layout explanation on Virar. The same has been updated & re-uploaded.

Moderators: Kindly delete the old layout.

Posted by Vijay Aravamudhan (guest) on 2009 May 19 15:23:19 +0000

Vijay, what Akshay is saying is right. The track layout at Virar has changed in the last year. The DC tracks end in a dead end. The 3rd & 4th AC lines continue as the mainline towards Vaitarna with loops for PF5 (no Neutral zone here). Also the MEMU lines end in a dead end to the north of the DC dead end (station building in between).

Posted by Dr.Jitendra Mulky on 2009 May 19 13:27:54 +0000

Great diagram.

Any idea by when the Pune - Karjat - Vangani section would be converted? There was an article in Dec 08 that the conversion work in this section is almost complete.

The SSPs and substations have already been installed in this section.

Posted by Girish (guest) on 2009 May 19 11:57:16 +0000

Akshay, I remeber, there were 2 DC lines ending at Virar for EMUs & 2 AC lines starting from Virar for MEMUs. But what about the main lines which continued beyond & had a neutral zone alongwith the newly constructed 3rd-4th lines? I have tried to refer to them only in my pix. As of today, I think, there are 4 lines which must be passing through Virar- 2 being the old ones & 2 being the new ones apart from loop lines if any.

Posted by Vijay Aravamudhan (guest) on 2009 May 19 08:33:24 +0000

Thank you so much Apu Sir.. :-)

Posted by Vijay Aravamudhan (guest) on 2009 May 19 08:26:39 +0000
