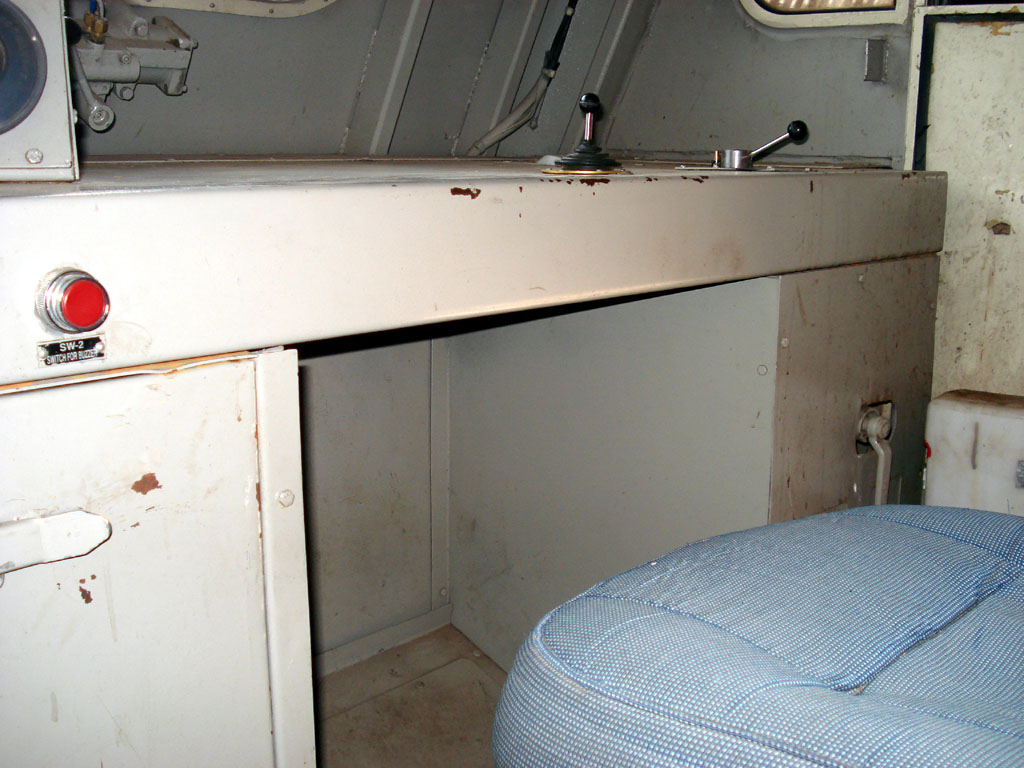

Anyway the assistant has much more leg room than the chief. Note the horn lever changing to three-phase type from the old piano type buttons. A mysterious lever just next to the horn lever. In all lots of changes from even the 226xx series itself, forget the older ones.

Date: 2007-11-05
Owner: Samar
Size:
Full size: 1024x768
Last
First •
DSC02116
Photo Properties
Summary  Details
Make SONY Model DSC-W30
Aperture Value f/2.8 Color Space sRGB
Exposure Program Program Flash Flash, Auto-Mode, Return light detected
ISO 80 Metering Mode Multi-Segment
Shutter Speed Value 1/40 sec Date/Time 2007 Nov 05 14:51:19 +0000
Comments
That lever pointing downwards which is next to the white PVC tank ( which contains water that is sprayed on the wind shield) is used to isolate the front BP and FP angle valves. This needs to be done incase they are damaged due to cattle run over.
Posted by Zubin J Dotivala on 2007 Nov 23 04:15:56 +0000
That happens to be an ejactor lever. Unauthorised people are hurled out of the loco when that lever is operated !
Posted by Zubin J Dotivala on 2007 Nov 21 01:47:32 +0000
Hmmm...quite interesting, so then what will happen if I pull the liver facing downward near the tank at 110 kmph.
Posted by Samar on 2007 Nov 20 17:05:39 +0000
| show full
That lever is used to spray water on the front windshield / glass and also activate the wipers. That white PVC tank that can be seen on the extreme right lower side contains water that gets sprayed. Samar I think you should " go forth where no man has...
Posted by Zubin J Dotivala on 2007 Nov 20 10:07:16 +0000
