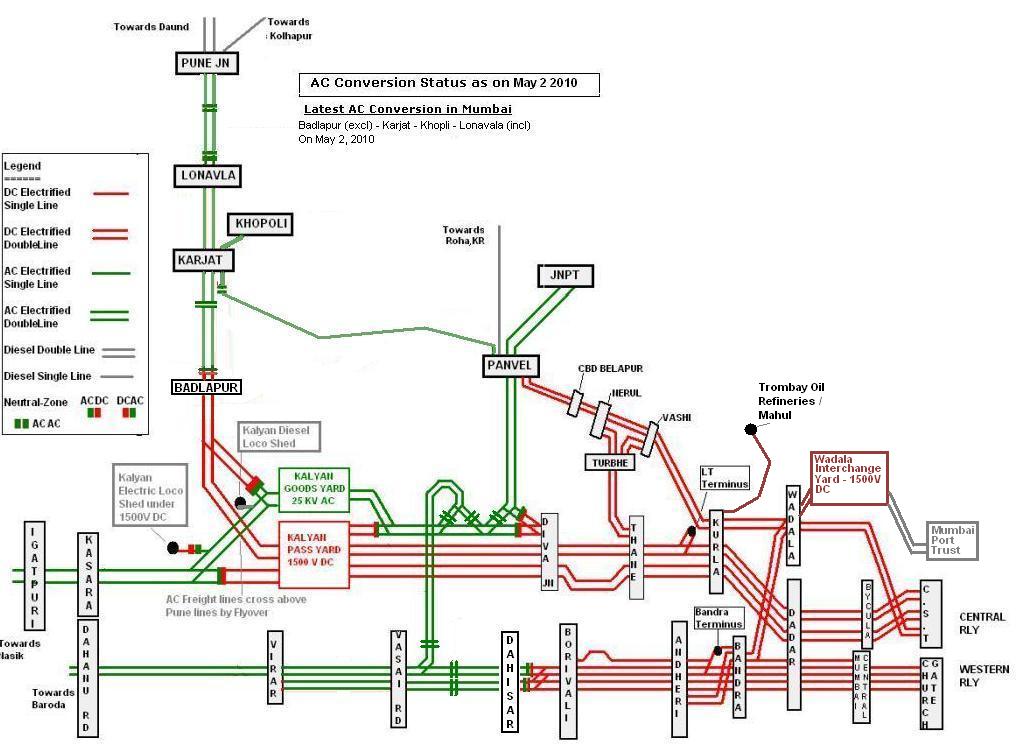

Picture showing the invasion of 25000V AC traction in Mumbai as on May-2-2010. Certainly not to scale. Just tried to show the progress made by CR & WR in bringing 25KV AC traction into Mumbai, ruled by 1500V DC at present. (Vijay Aravamudhan)
Date: 2010-05-03
Recent comments
Hello, I have updated the details AC-AC Neuatral Zones as also some additional lines, which I didn't show previously:
1. Kurla-Mahul Line under 1500V DC
2. Wadala-Interchange Yard under 1500V DC
3. MPT lines from Wadala under diesel...
Hello, I have updated the details AC-AC Neuatral Zones as also some additional lines, which I didn't show previously:
1. Kurla-Mahul Line under 1500V DC
2. Wadala-Interchange Yard under 1500V DC
3. MPT lines from Wadala under diesel traction
Thanks to moderators for replacing the pic with updated one.
Posted by Vijay Aravamudhan on 2010 May 07 06:03:46 +0000
Very well done, Vijay! Thanks for sharing!
Posted by Harish Kumar on 2010 May 05 06:53:59 +0000
Great job, Vijay. Many thanks for these continuous updates.
Posted by Manish on 2010 May 04 13:41:52 +0000
