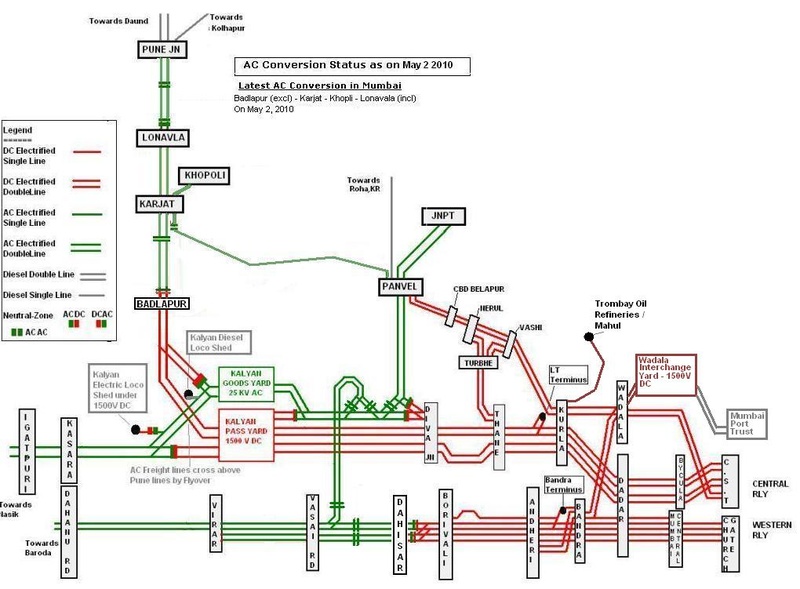

Picture showing the invasion of 25000V AC traction in Mumbai as on May-2-2010. Certainly not to scale. Just tried to show the progress made by CR & WR in bringing 25KV AC traction into Mumbai, ruled by 1500V DC at present. (Vijay Aravamudhan)

Date: 2010-05-03
Owner: Gallery Administrator
Size:
Full size: 1020x751
Last
First •
AC_Invasion_Mumbai_4
Comments
| show full
Hello, I have updated the details AC-AC Neuatral Zones as also some additional lines, which I didn't show previously:
1. Kurla-Mahul Line under 1500V DC
2. Wadala-Interchange Yard under 1500V DC
3. MPT lines from Wadala under diesel...
Posted by Vijay Aravamudhan on 2010 May 07 07:03:46 +0100
Very well done, Vijay! Thanks for sharing!
Posted by Harish Kumar on 2010 May 05 07:53:59 +0100
Great job, Vijay. Many thanks for these continuous updates.
Posted by Manish on 2010 May 04 14:41:52 +0100
@Vijay AC-AC NZ's to add to this diagram include one after Virar towards Dahanu, one between BSR and Juchandra(its just on the end of curve towards Diva).
Posted by Aamod on 2010 May 03 17:04:40 +0100
| show full
Akshay, Thanks for the same. The concept of AC-AC nzs seems to have missed from my concept. Would request you to provide me such list in this section. I shall update the same on my map. I believe Kopar-Vasai and Kopar-Panvel also has one, in addition to...
Posted by Vijay Aravamudhan on 2010 May 03 12:46:48 +0100
From AC-AC NZ, I noticed, there is an AC-AC NZ between BSR - Naigaon which is missing in the figure.
Posted by Akshay Marathe on 2010 May 03 12:38:21 +0100
Good work & thanks for sharing.
Posted by Dinesh Hukmani on 2010 May 03 12:17:55 +0100
Very nice Vijay.
Posted by Arzan Kotval on 2010 May 03 10:40:27 +0100
Thanks one and all. I shall have updated this with respect to 2 AC-AC neutral zones.
Posted by Vijay Aravamudhan on 2010 May 03 10:07:57 +0100
Great Effort VJ. However, there'll be 2 AC-AC Neutral Zones between LNL and Pune.
Posted by Kharad Zarir Variyava on 2010 May 03 10:00:16 +0100
I second Apurva... Vijay: Good work done!
Posted by Gowri Sankar R on 2010 May 03 09:56:41 +0100
I appreciate your effort in speedily updating the AC electrification map. Great job.
Posted by Apurva Bahadur on 2010 May 03 08:48:35 +0100
