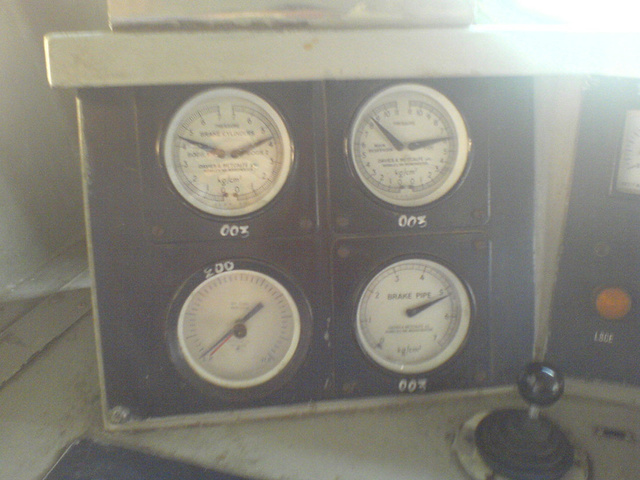

These four circular dials also exist in WAP-7 class of locos, do they have the same function? Rahul
Date: 2008-01-12
Full size:
1100x825
Photo Properties
Summary Details
| Make | Sony Ericsson | Model | K750i |
| Aperture Value | f/2.8 | Color Space | sRGB |
| Exposure Bias Value | 0 EV | Flash | No Flash |
| ISO | 200 | Metering Mode | Center Weighted Average |
| Shutter Speed Value | 1/25 sec | Digital Zoom Ratio | 1 |
| Date/Time | 2008 Jan 12 12:30:26 +0000 |
Recent comments
This arrangement exists in all three classes of these locos-namely the WAP5/7 and WAG9.Similar guages are also provided in other Electric as also Diesel locos on the Indian Railways.
Top left:Brake Cylinders-Bogie 1/2,Top Right:left needle-main...
This arrangement exists in all three classes of these locos-namely the WAP5/7 and WAG9.Similar guages are also provided in other Electric as also Diesel locos on the Indian Railways.
Top left:Brake Cylinders-Bogie 1/2,Top Right:left needle-main reservoir pressure,right needle-Feed-Pipe Pressure,Bottom left:Air flow in Brake-Pipe,Bottom right:Brake-Pipe Pressure.
The yellow light to the extreme right-LSCE is to indicate over-temperature in Central Electronics compartment of the Locomotive.
Posted by Khalid Kagzi on 2008 Jan 14 11:54:16 +0000
Gauges for the BP, Brake cylinders etc
Posted by Siddhartha Ganesh on 2008 Jan 14 08:15:53 +0000
