Layouts and Maps
Indian Railways A & B routes. By Varun.

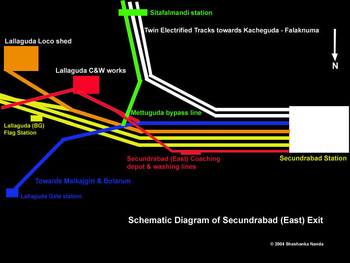

Station Layout of the Secunderabad Junction. By Andrews.
Bombay area map. About 1946. By From Press Information Booklet Loaded By David Churchill.
Layout map of Panvel station lying between DIVA and ROHA on CR CSTM Division. Panvel-PNVL, 21-02-2005. By Binai.K.Sankar.
Line Diagram of the Bhorghat. Bhorghat between Khandala and Karjat, 01.03.05. By Dr. Shirish Yande (yandesh@vsnl.com).
A map showing the alignment of Railway lines in Navi Mumbai, Maharashtra. Navi Mumbai, 2005-03-05. By Binai.K.Sankar.
A map showing the route of Deccan Queen Exp with the other major route Mumbai-Igatpuri. The newly Karjat-Panvel line is also shown in the map. Onboard Deccan Queen Express, 2005-04. Sachin Balwatkar.
Anand Station Layout. 21/04/2005. Nitin Master.
Map of Bhubaneswar and surroundings. By Sudeep Hota.
Layout of the Rail area around Sanathnagar. I have excluded the tracks but for one major point of junction of the Bypassline and Mainline. 24/06/05. Aniketh.
Yard Layout of Grant Road (GTR)... 15th July 2005. Kharad Zarir Variyava.
A schemati layout map of the area between Kalamboli and Panvel on the DIVA-PNVL-ROHA section of Central Railway. Kalamboli-Panvel, 15/08/2005. Binai K. Sankar.
Station Diagram of Mysore Jn.
Sample diagram - not authenticated.
Not for commercial use.
Station layout of Hyderabad deccan. By Aniketh.

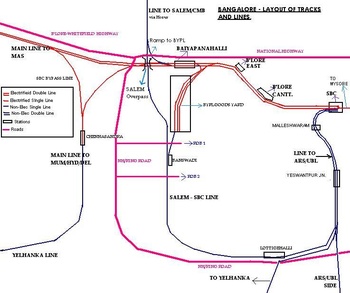

Schematic of tracks in Bangalore area.
Layout of Virar station and Neutral Zone (Dead Zone) at Virar where the electric traction power supply changes from 25kV AC to 1.5kV DC and vice versa. By Piyush Merai, Nov. 2005.
Layout of tracks around Bangalore City area
Layout of tracks at Bangalore City Station
Layout of tracks at Yesvantpur Station
Layout of tracks at Mysore Station (The original itself was not very legible)
Detailed layout of tracks in&around Kharagpur. Photograph taken from a life-size chart at the Route Relay Interlocking cabin at KGP. JPEG, 2304x1728 (4 Mp), Compressed, 780 KB.
A Layout map of Thane station, Central Railway, Mumbai Division. Of the platforms Platform 1 still has old styled canopy, which was probably built by the british!
Borivali Station Layout after mega block.
Map Layout between Dombivli & Diva Jn, with New Kopar Stations on Focus.
Scan of inset map from 1945 Government of India Railway map showing pre-independence companies. The map is very fragile and damaged but I can post some scans of the main map if anyone is interested. Shows different gauges and makes an interesting comparis
Bangalore Railway Network Map (Revised and corrected version).

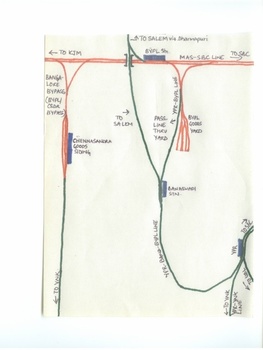

To sort confusion: YPR area layout. The lines between YPR and Lotegolahalli are a dual alignment: one going to Yelahanka and the other to Bypanahalli and Salem via Banaswadi. They do not meet other than at YPR outer in the direction of Bangalore City Junc
