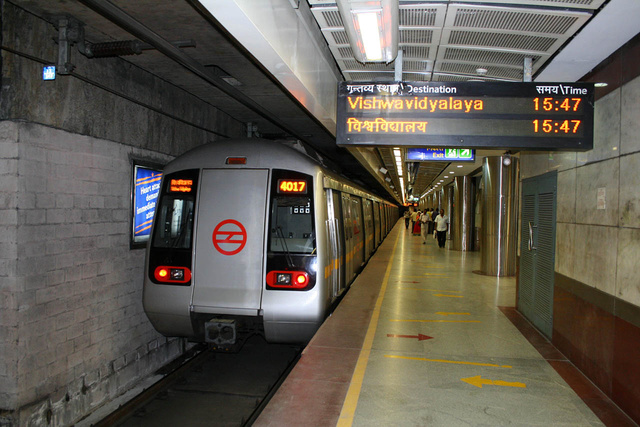

The 1547 Delhi Metro 'Yellow Line' service to Vishwavidyalaya leaves Chawri Bazar station. This is currently the deepest station on the DMRC network, with the platforms being 22m below street level.

Date: 2008-04-25
Owner: Shashanka Nanda
Size:
Full size: 1280x853
Last
First •
_MG_6323
Photo Properties
Summary  Details
Make Canon Model Canon EOS 350D DIGITAL
Aperture Value f/5.6 Color Space Uncalibrated
Exposure Program Manual Flash Red Eye, Compulsory Flash
ISO 800 Metering Mode Partial
Shutter Speed Value 1/25 sec Date/Time 2008 Apr 25 15:46:58 +0100
Comments
The track has no ballast (understandable, even KR has ballastless sections) and no sleepers too! Is it that way only on underground sections? Also, where does the track derive the stability that ballast and sleepers provide in the absence of both?
Posted by Karan Desai on 2008 May 02 14:35:46 +0100
Rail type structure supports the OHE wire, i.e. carries the wire.
Posted by Siddhartha Ganesh on 2008 May 02 07:24:21 +0100
| show full
Ah Sid! No one ever said that metal rail can "generate" electricity. Generation of electricity is the job of thermal power stations :-). Metal rail can only feed electricity. As for your statement the "rail type structure only supports the OHE wire", it...
Posted by M S M Saifullah on 2008 May 02 06:58:02 +0100
Let me point out one thing. This rail type structure only supports the OHE wire. The metal rail does not generate the electricity if that is what some of you are thinking. And yes the same pantos can be used for this too.
Posted by Siddhartha Ganesh on 2008 May 02 04:53:07 +0100
The rail type OHE conductors are common in Tokyo's Metro trains. One of the reasons for having a rail-type conductor is reduced hassle of maintenance of OHE equipment inside the tunnels. Rail-type OHE is easier to install and nearly maintenance-free.
Posted by M S M Saifullah on 2008 May 02 02:30:24 +0100
Apu sir, any specific reason for this arrangement? Can the same panto be used for OHE cable and rail? Also the height between top of coach and OHE looks very less.
Posted by Karan Desai on 2008 May 01 17:22:32 +0100
| show full
Karan, the doors of the DMRC rakes stop exactly where these arrows are situated. The red arrow is to indicate to the travelers inside the way out and the yellow one is to indicate to the people waiting the way to boards the rake. This was done so that...
Posted by Siddhartha Ganesh on 2008 May 01 06:09:16 +0100
Pardon my ignorance, but what do the red and yellow arrows on the platform signify? Do the passengers know its meaning?
Posted by Karan Desai on 2008 May 01 04:45:00 +0100
