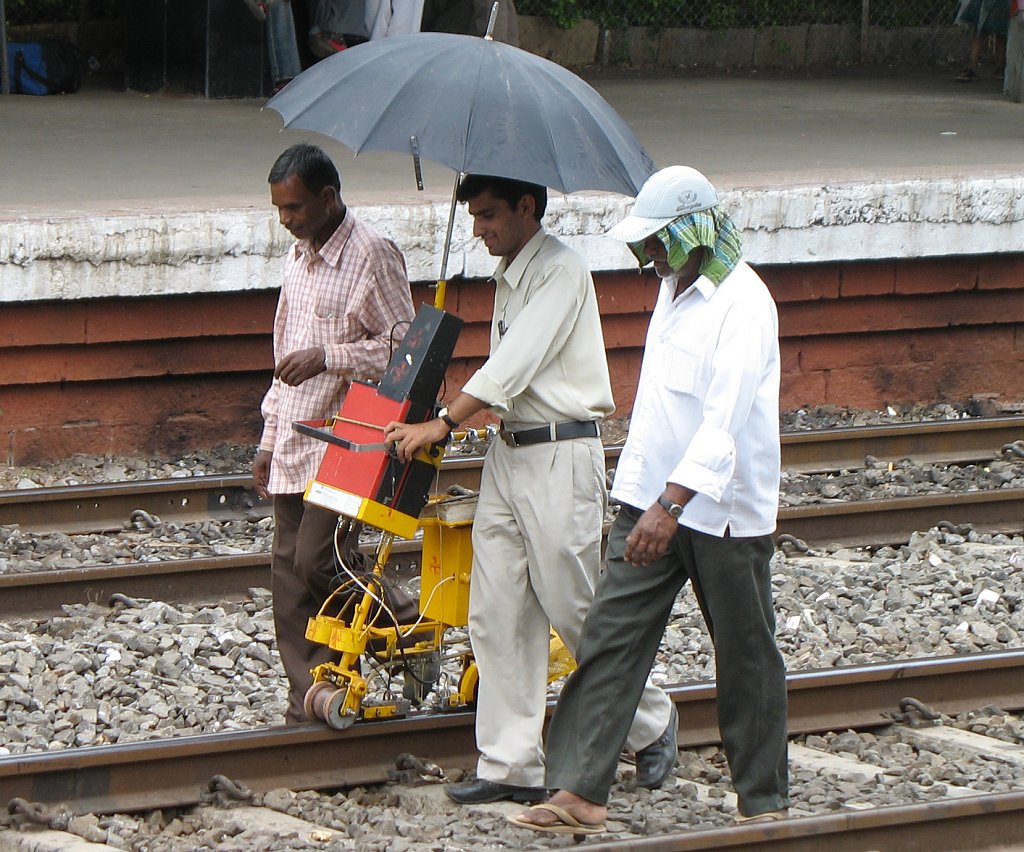

This is the first ever pic of a human powered ultrasonic rail crack detection jig being used.

There seem to be two ultrasonic probes mounted in tandem near the rails, an oscilloscope like viewing unit, a power pack, a water tank (to wet the rails and provided a 'fluid filled membrane' in which the ultrasonic work the best) and of course an umbrella for the operator :-)
Some background of the ultrasonic crack detection process here. Talegaon, 28th April 2007.

Date: 2007-04-29
Owner: Gallery Administrator
Size:
Full size: 1024x852


Comments
This is a single rail tester. A double rail tester is more in vogue these days, which doubles the output for same line occupation.
