Under the hood - WAP7
Photos from inside the WAP7. Photos and captions thanks to Khalid Kagzi and others.

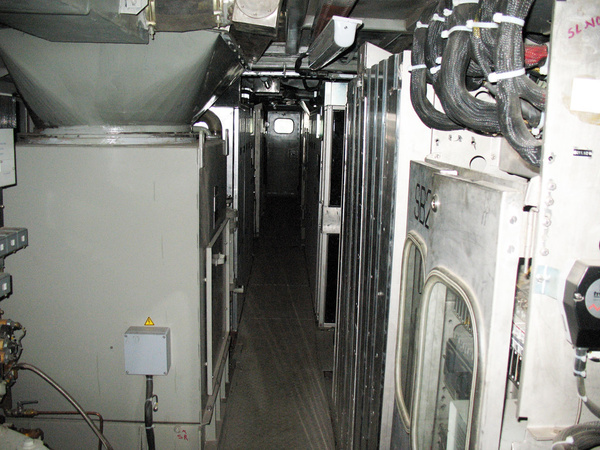

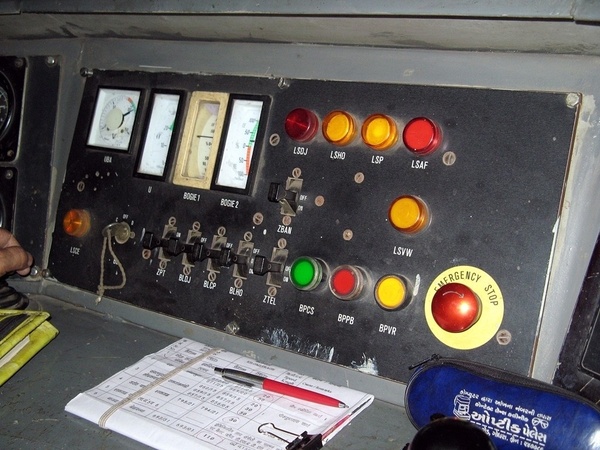

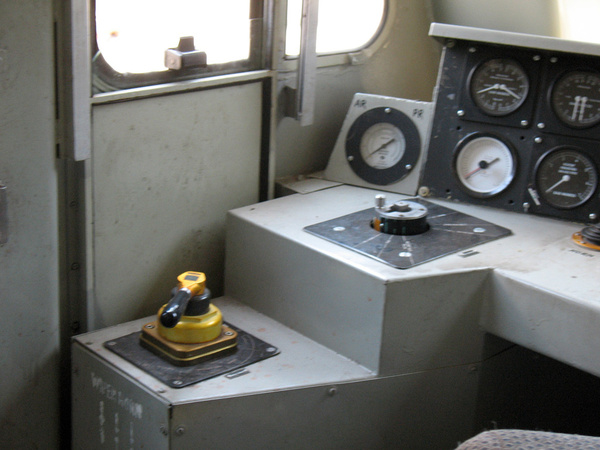

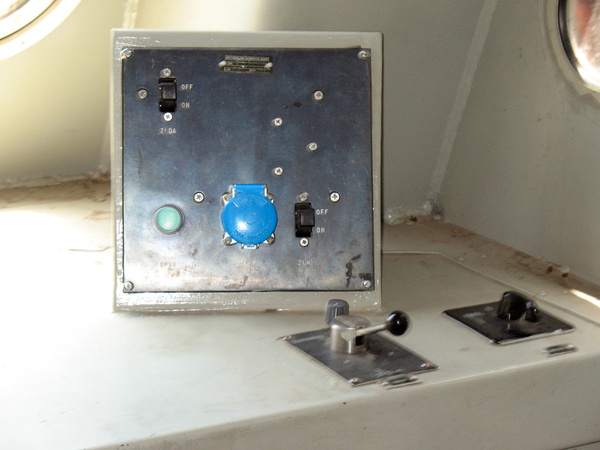

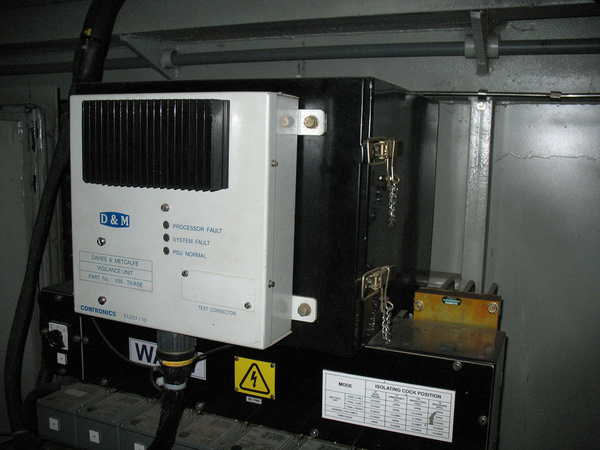

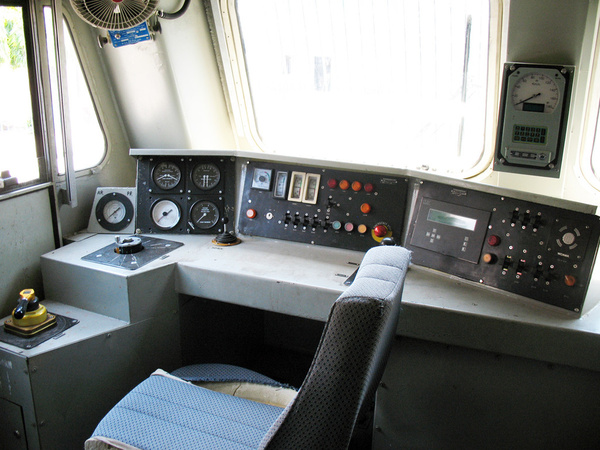

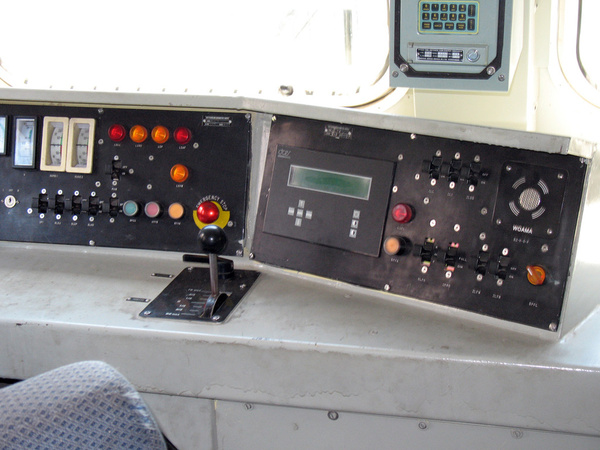

LSDJ:To indicate status of Main Circuit Breaker; LSHO:Lit if the Hotel load contactor is closed and the loco is supplying power to the train; LSP:To indicate wheel slipping/skidding; LSAF:To indicate excess air-flow in brake-pipe; LSVW:To indicate vig
()
()

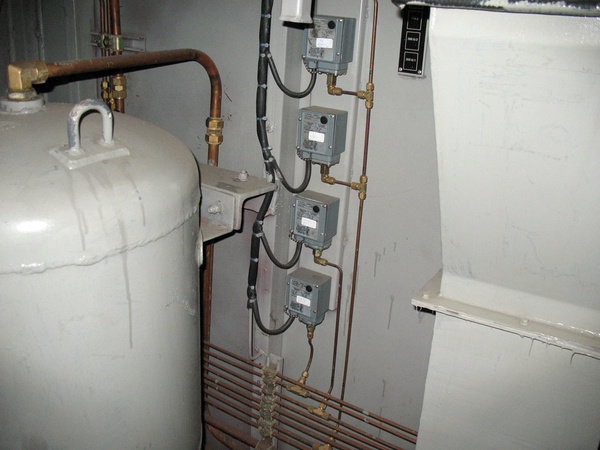

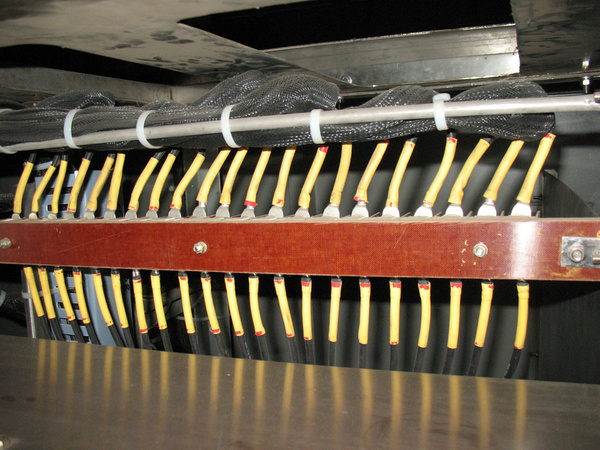

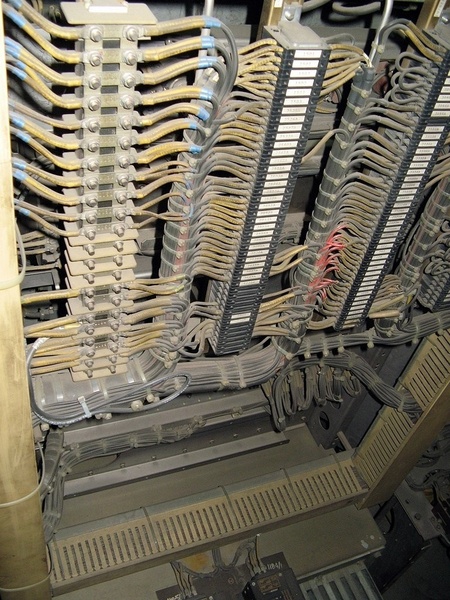

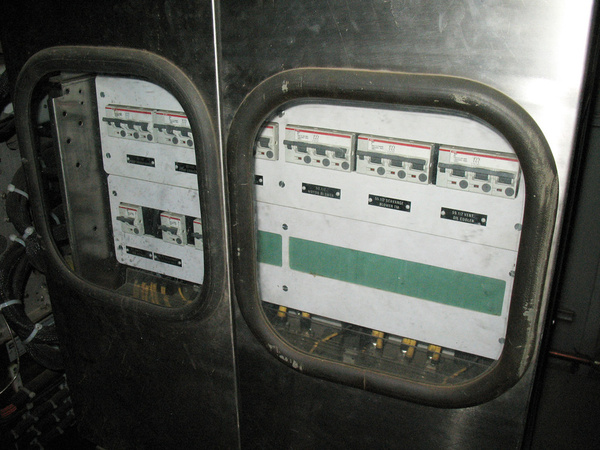

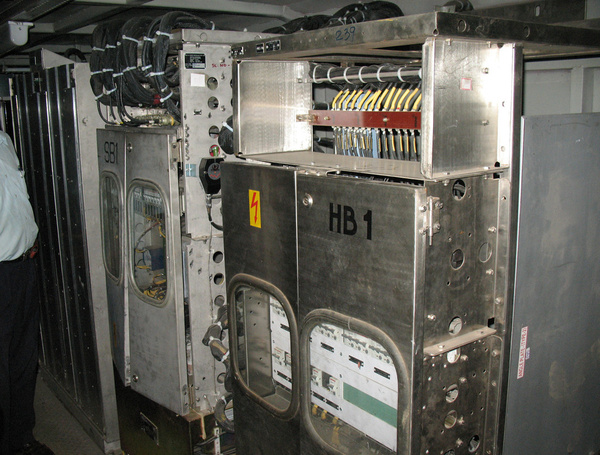

Neatly terminated wires on the back-side of Auxiliary cubicle. (Khalid Kagzi)

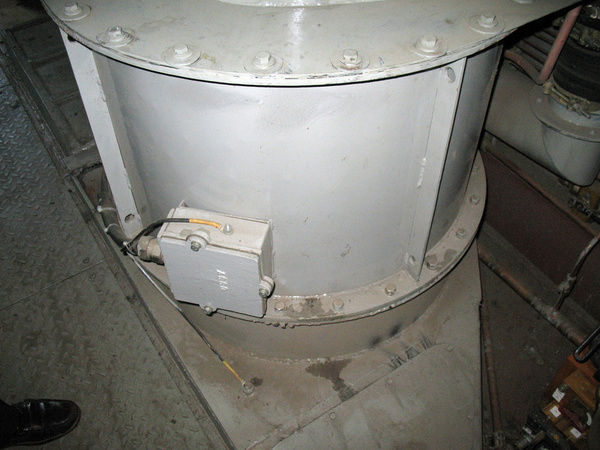

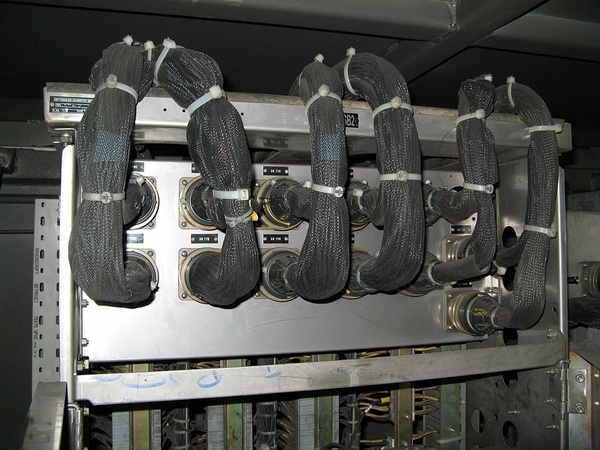

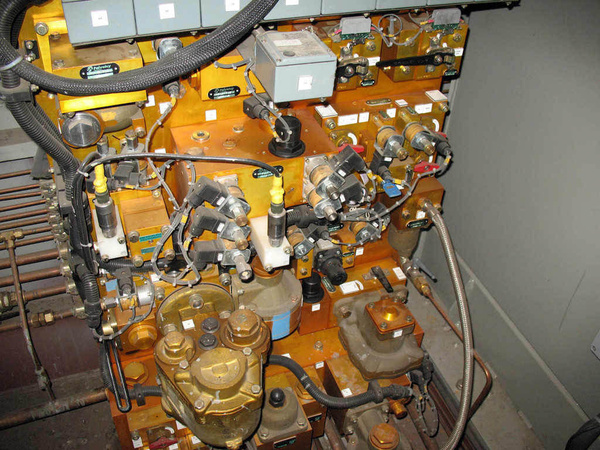

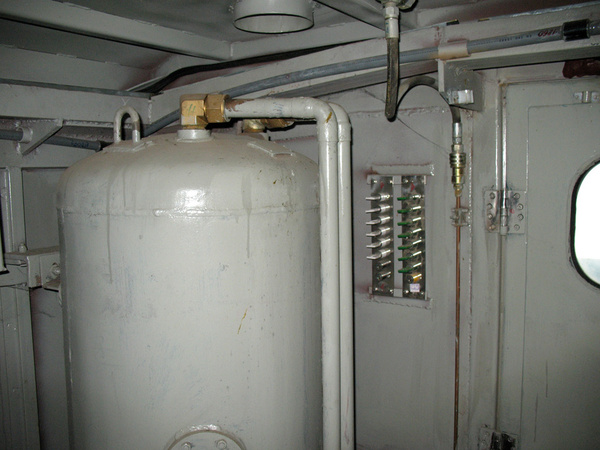

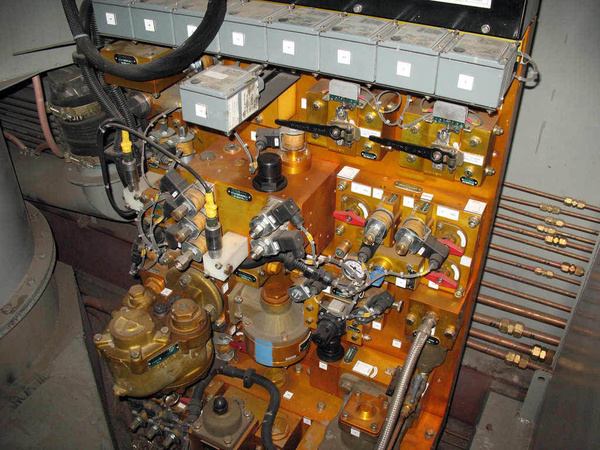

All the equipment is interconnected by plug-in type connectors which makes removal/replacement easy and fast. (Khalid Kagzi)

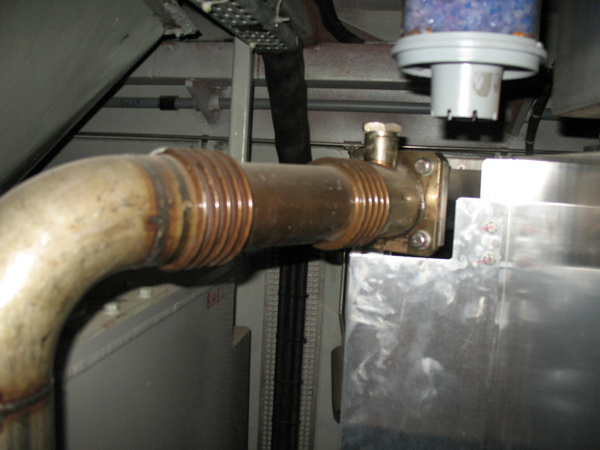

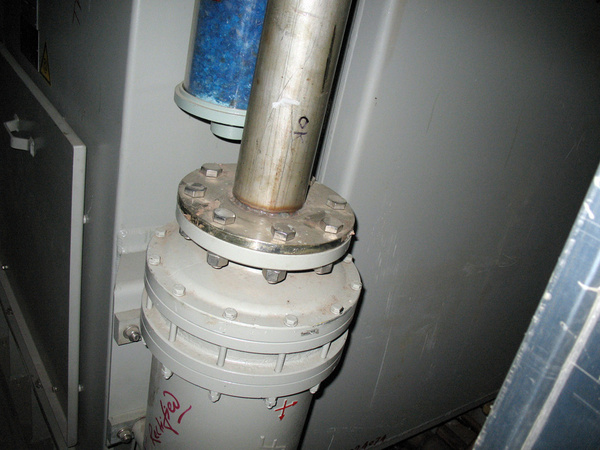

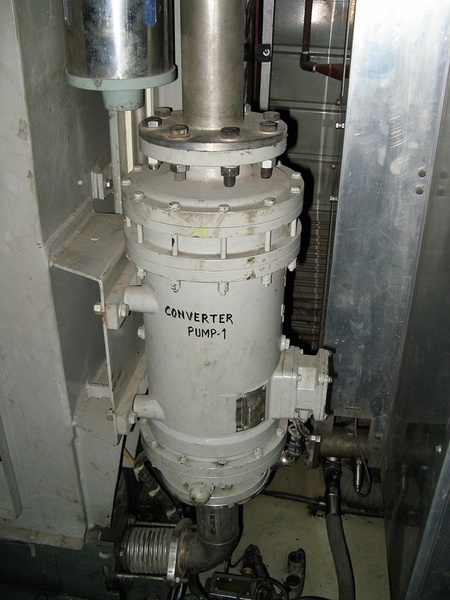

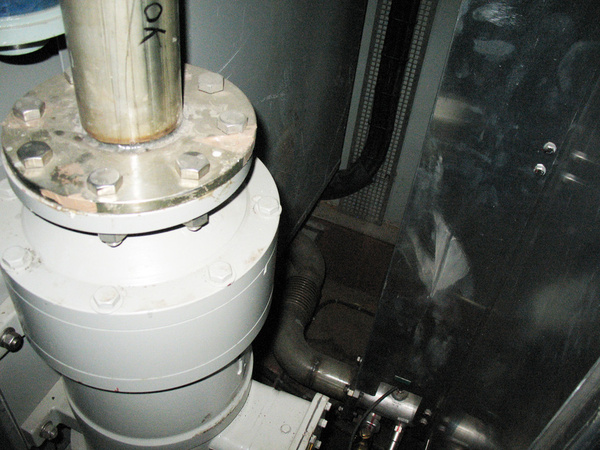

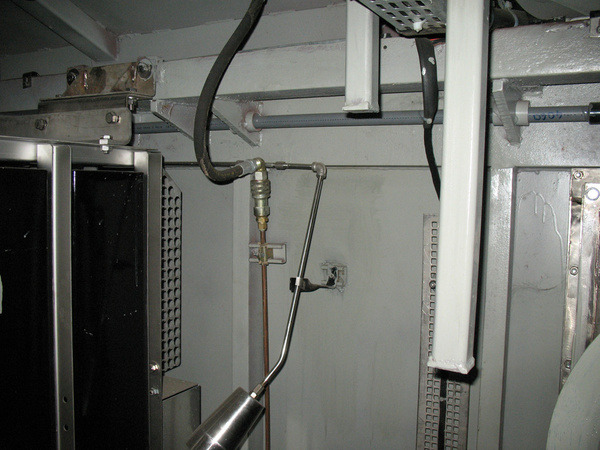

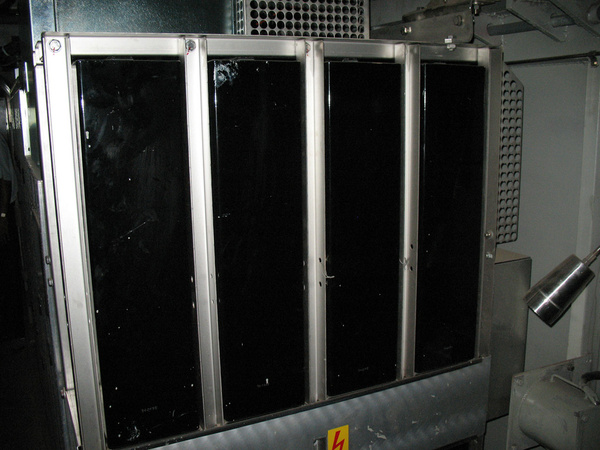

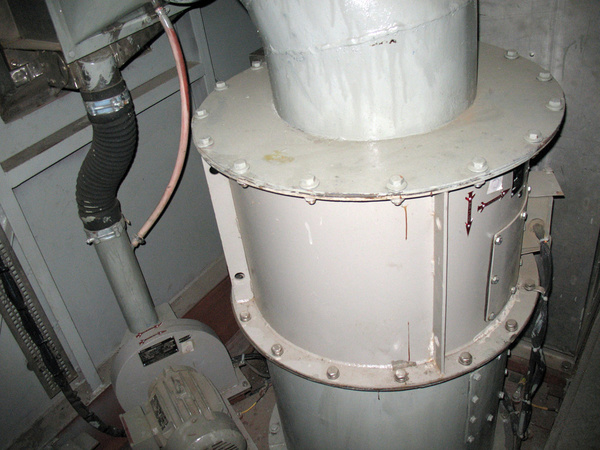

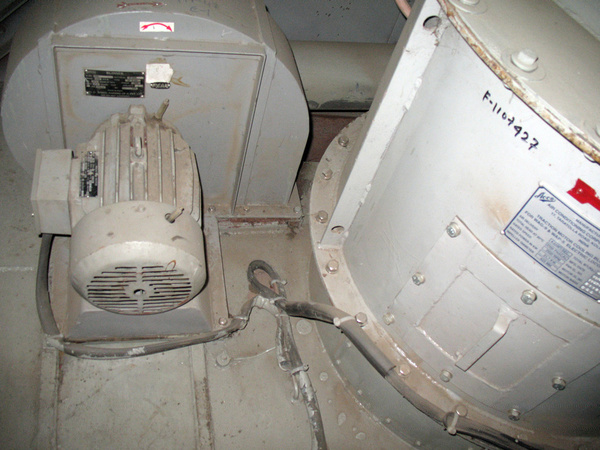

Traction Converter/transformer oil circulating pump. (Khalid Kagzi)

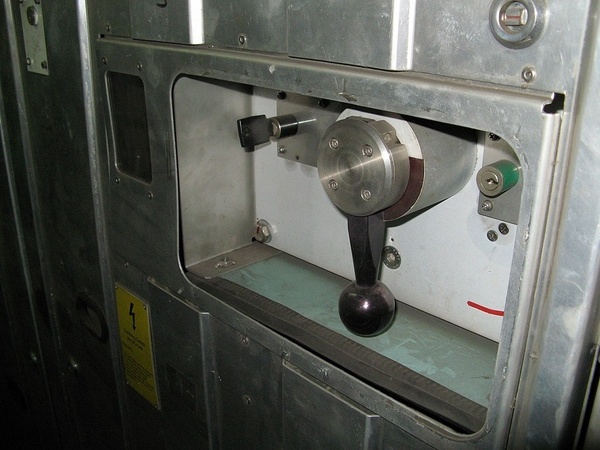

Earthing switch for converter/transformer unit.Its interlocked in such a way that it can earth the unit only if the roof-line of the loco has been earthed first.The key from this unit can be removed only after its earthed and then the key can be used to u
