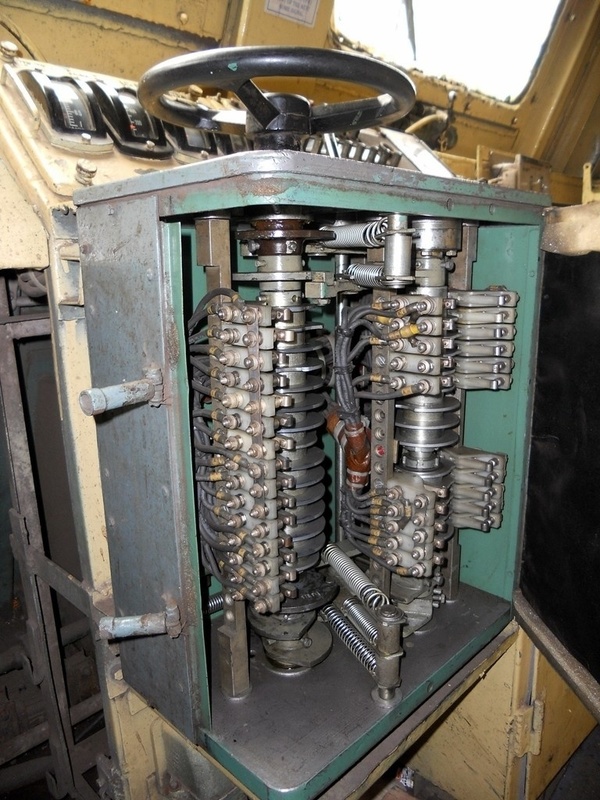

Master controller contact drum.The cams make and break contacts depending on the position of the wheel above.This whole assembly is modular and it can be removed/replaced in minimal time.The master controller interfaces with the rest of the loco circuits through a plug-in type arrangement. (Khalid Kagzi)
