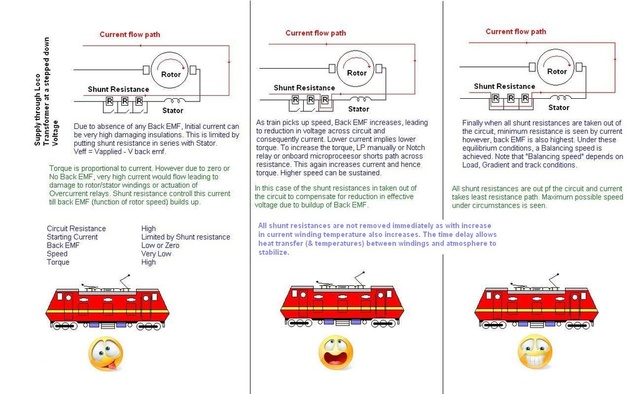

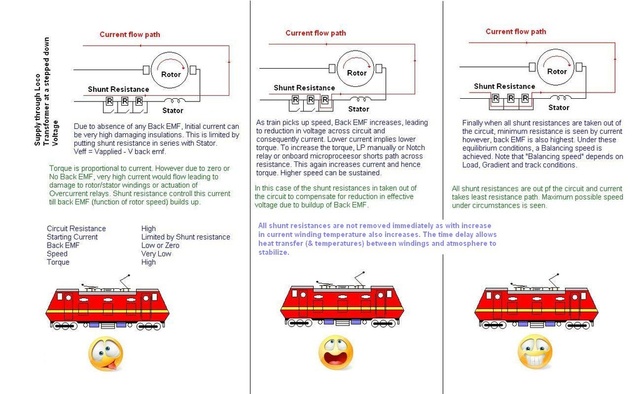

In response to Sachin's pic showing Shunt removal instructions inside Loco. I hope this will help in understanding working of DC motor Locos such as WAP 1/4 and WAG 5/7. Back EMF is a potential developed across a rotating motor which has reverse polarity to the supply voltage. It has a tendency to reduce the supply voltage which drives the motor. Thanks to Electrical Services Department Engineers for their technical inputs. (anant singh)
Date: 2009-10-16
Recent comments
Very informative , look at the way the Armature and the Field windings are connected , they are connected in series indicating that its a DC Series Motor implying that when connected across the supply Voltage the Current carried by the Armature and the ...
Very informative , look at the way the Armature and the Field windings are connected , they are connected in series indicating that its a DC Series Motor implying that when connected across the supply Voltage the Current carried by the Armature and the Field windings are the same which would generate very high starting Torque.
Posted by Ashwin Rao on 2009 Oct 18 15:05:05 +0000
Nice. Thank you for sharing.
Posted by R Viswa Chandra on 2009 Oct 16 16:14:31 +0000
