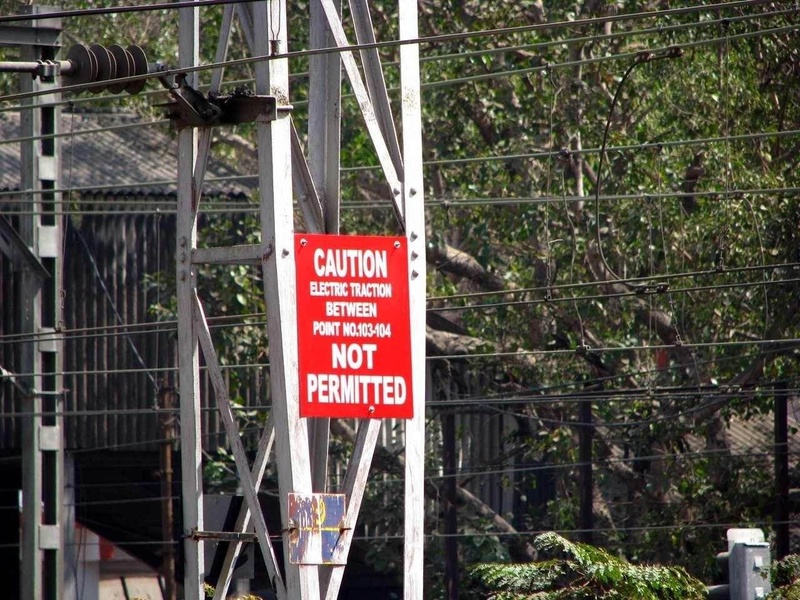

WR has installed such boards before the turnouts between WR and CR lines near Elphinstone road prohibiting dual voltage locos from using those turnouts . (Aadil)

Date: 2012-02-03
Owner: Aadil S
Size:
Full size: 1280x960
Last
First •
IMG_9265
Photo Properties
Summary  Details
Make Canon Model Canon PowerShot S5 IS
Aperture Value f/3.5 Color Space sRGB
Flash No Flash ISO 80
Metering Mode Center Weighted Average Shutter Speed Value 1/400 sec
Digital Zoom Ratio 1 Date/Time 2012 Feb 03 13:48:39 +0000
Comments
Kharad , the neutral zone structure on the OHE above the turnouts is similar to the one at Diva and AC-DC locos face no problem in negotiating those turnouts at Diva . I wonder why such restriction is imposed here .

Posted by Aadil S on 2012 Feb 10 14:35:51 +0000
If I am correct, these turnouts are used very rarely. In case of any need, or in case of any emergent situation, we can always go back to diesel locos !
Posted by S. Srinivas on 2012 Feb 10 14:19:21 +0000
I've seen boards stating "Unwired Turnouts". But does this one imply that the OHE over points 103, 104 is not charged, and probably serves as a "unusable" Neutral Section due to the restricted speed over them resulting in a probable stalling??
Posted by Kharad Zarir Variyava on 2012 Feb 10 02:17:06 +0000
Good one Aadil.... This one also was required in our album
Posted by Vijay Aravamudhan on 2012 Feb 09 13:43:39 +0000
