While Mumbai is at sea level, Pune is 1800 feet above sea level.
The railway line climbs this height in a steep 'ghat', which is a
steep incline of 28 Kms between Karjat and Lonavala. The incline is
1 in 33 in some places and is an formidable challenge for the
railways. However the dedicated railwaymen of Central Railway,
Mumbai division ensure over 100 daily movements in both direction
in all weathers.
The Model Railway Society of Pune (MRSP) had gone to Thakurwadi
in 1992 for a trip to see the ghat operations and particularly to
see the 'service tunnel' between Thakurwadi and Nagnath.
 |
If the PNG version [3 KB] of this image
doesn't work, try the JPEG version [21 KB]
instead.

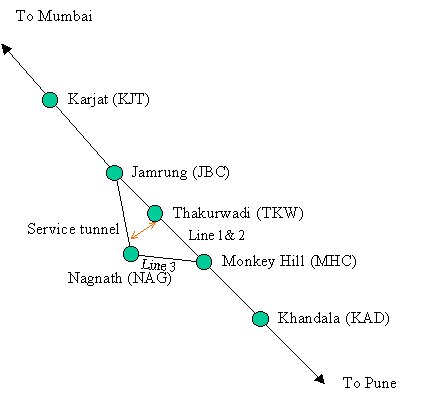

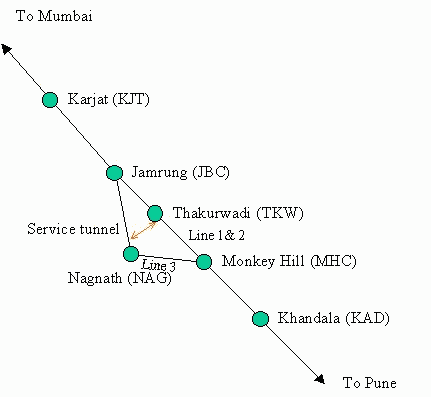

This is a rough map of the ghats between Mumbai & Pune.
There are three tracks between Lonavala and Karjat. The older two
tracks go past Thakurwadi, while the newer third line diverts at
Monkey Hill and touches Nagnath on the other face of the hill. All
lines merge at Jambhrung cabin.
There are special procedures to prevent accidents in the ghat
section.
The Down train climbs from Karjat at almost sea level to
Lonavala through Khandala at 1800 feet above sea level with the
help of banking WCG2 locomotives.This prevents a coach rolling back
in case of a coupling failure as well as to assist the leading loco
which is at the limit of adhesion.
The Up train (descending!) stops at three 'catch sidings', which
are tracks leading steeply into the hillface. If a train is
runaway, and it does not stop at the designated signal for a
minimum period, it would go on this track and be braked by the
slope of the hill. Under normal circumstances, the Up train stops
at Khandala, Monkey Hill, and at Thakurwadi (or Nagnath) for three
minutes before being allowed to go on the main track. Thus there
are signals, points and a cabin at these locations.
|
|

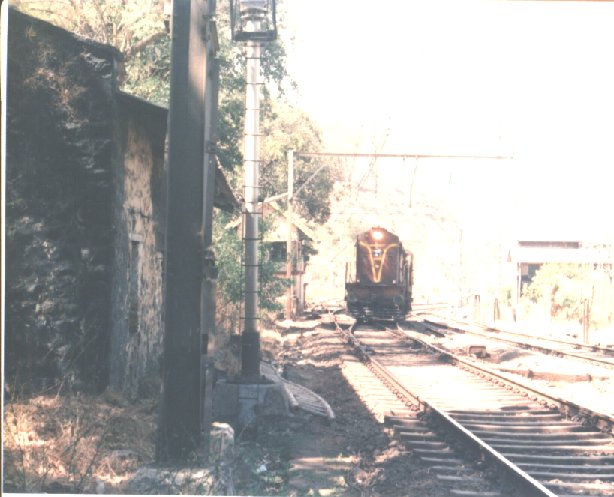

This is a Pune WDM2 coming from Jambrung cabin to Thakurwadi.
It is crossing the down main line onto the middle line (which can
handle up or down traffic). The Thakurwadi traction substation is
towards on the right. Only light locomotives are allowed to climb
the ghats without a banking locomotive. Even a single coach train
is required to be banked to prevent a runaway in case of coupling
failure during the climb. |
|

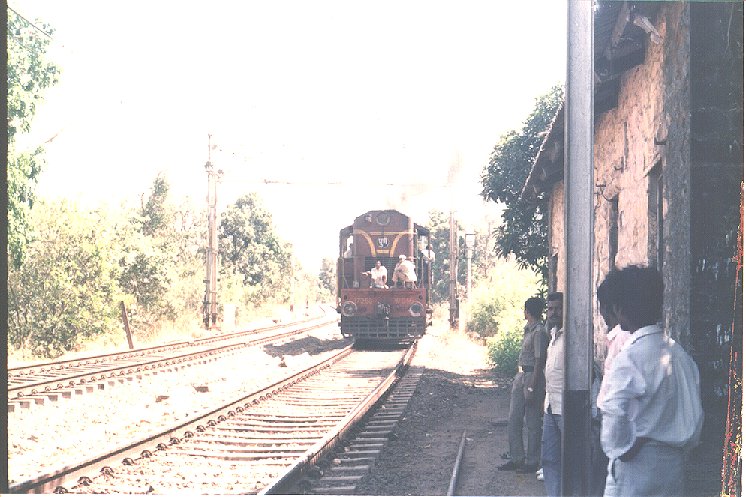

It is very hot and the air is still, the WDM2 drivers work
their loco with the doors open. Local public uses the banking locos
to travel from one point to another. However they are not allowed
in the cab, thus travelling on the buffer beam. The building on the
right is the police post guarding the traction substation. |
|
There is a service tunnel which links TKW and top of the NAG
catch siding. This view is at the NAG end of the service tunnel.
The service tunnel was used during the construction of the 3rd line
to carry the material from TKW side. As the TKW substation powers
all the three lines, the tunnel also carries the 1.5 KVDC OHE cable
to the NAG side. This can be seen on the left of the picture. The
train (6012 Up Chennai - Mumbai Express, I think) waits at NAG
cabin during its mandatory halt. |
|
Normally the points are set so that the train would get
diverted to the catch siding. Only if the train stops for the 3
minute period do the points now allow the train on the main line.
This is a very simple yet effective method of ensuring safety
during descent in the steep Bhor ghats. Here the '12 Up' with the
WCM2 power is just starting from NAG. |
|

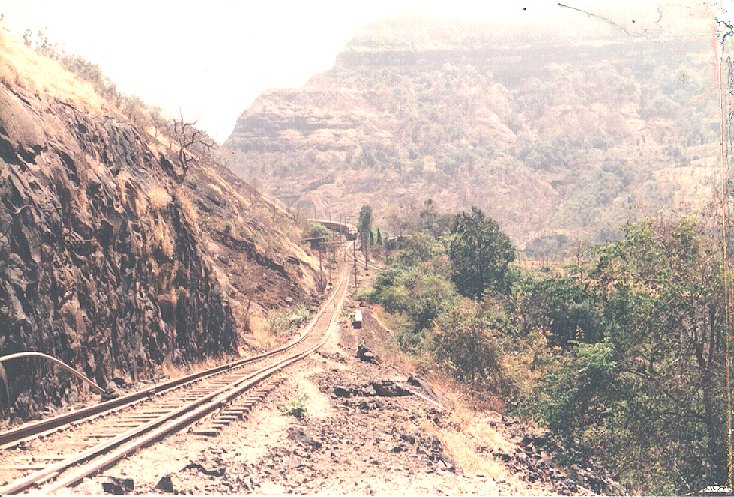

Following the profile of the hill the train crawls down the
ghats at 50 Km/h. At such steep grades, all that is required is for
brakes to be released and the train achieves its rated velocity
within no time at all. The landscape is typical of the rugged
western ghats. |
|

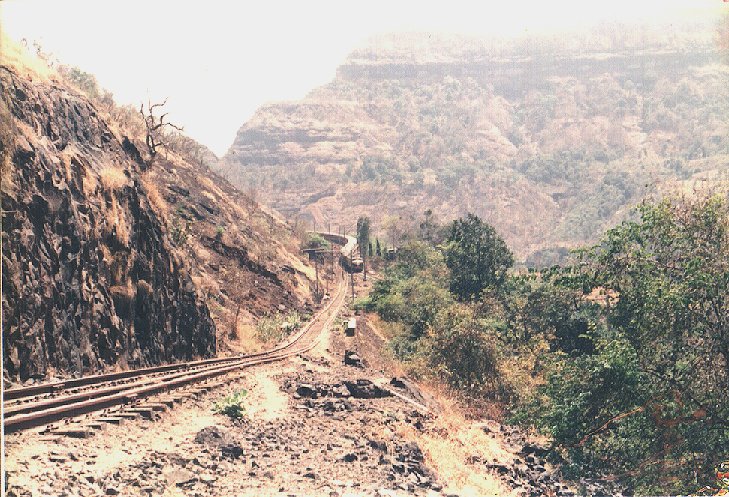

The WCM2 power crossing our position. |
|
Viraf, Apurva, Manish and Shyama (who took the picture) ride out
the BFR!
There are three trains round the clock (1007 Dn Deccan Express,
1009 Dn Sinhagad Express and 1023 Siddheswar Express) which carry
the fresh shift staff to the substations and the various cabins in
the ghat. As per our original schedule, we were due to take the
1009 Dn. Sinhagad Express which stops at TKW for one minute to
Pune. But this was not to be!
|
|
There was a derailment near Neral, which delayed all the
traffic indefinitely. We heard this news with a knot of fear in our
bellies, the thought of walking 11 Kms to Khandala (where the
highway crosses the railway lines) in fading light (and through
numerous unlit tunnels), in a tired state was very depressing.
However the IR sent the 'work train' to the rescue. This is a
departmental rake used for permanent way maintenance which is homed
at Lonavala. This rake was sent to bring back all the junta caught
in the ghat due to the derailment. Many of our friends climbed into
the leading WCG2 loco, while we chose to ride the BFR flatcar. Note
the WCG2 banker at the rear. Our faces wear the relief having got a
ride out of the ghats. |
|

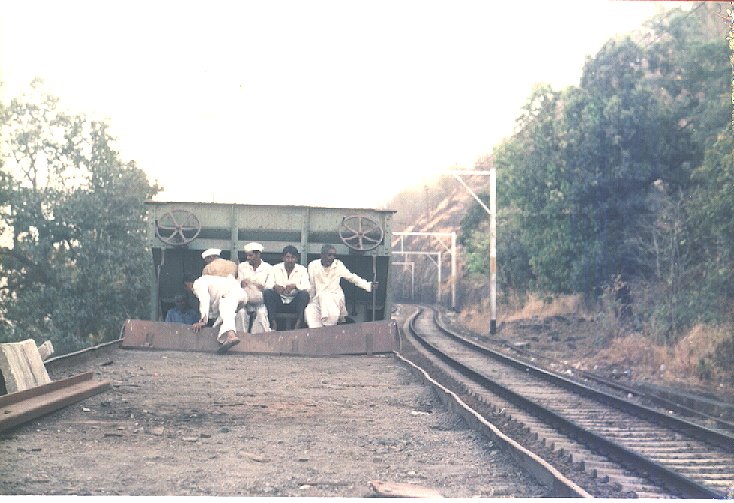

The view forward of the BFR. Note the rails and the sleepers
used as for the permanent way maintenance. The wagon before the BFR
is the ballast hopper wagon. Apparently that was more comfortable
than the BFR, causing these people to change their perch. The BFR
had previously carried some chemicals which caused severe itching
to all of us for a couple of days. |
|
Shyama is ecstatic about the ride. We always wanted to ride a
flat car, and we got the opportunity to do so only in such strange
circumstances. We took the 2.6 Kms long tunnel no 26 from Monkey
Hill to Khandala on this journey. It is an eerie experience,
sitting for many minutes in total darkness without any clue to
where we were. The darkness was suddenly broken by the huge
ventilation shafts from the tunnel to the top of the mountain. |
