This is the 7384 Down Maharashtra Express making a smoky start from Karad (KRD) on the Pune - Miraj - Kolhapur line.

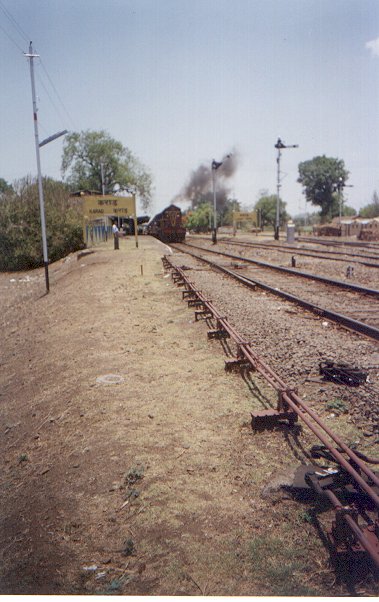

Photo 1: The 'Starter' signal of road 1 (track nearest to the Station Master's office) is at 'Caution' (45°) while the 'Starter' on the main through line (road 2) and the other platform loop line (road 3) is 'on' (horizontal — NO GO!). Please deprogram yourself — an 'Off' signal means 'Proceed', and an 'On' signal means 'Stop'. The throttle of the WDM2 has been brought off from idle. Not much of a trailing load today with 13 coaches = 650 tons.

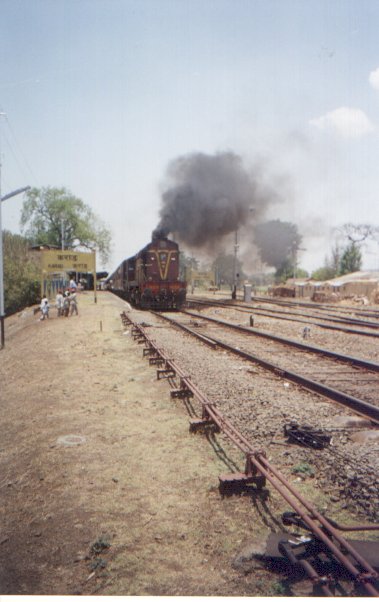

Photo 2: The governor kicks in! Raw fuel flows in the injectors, the Alco begins to accelerate from standstill. Note the 'derailing point' on the tracks just after the platform. This point is normally in the 'derailed' position and is closed only to allow a train on road 1 to enter the main line. Note the control rods for operating the points and the control wires leading to the signals on road 2 & 3. The shiny spots on the loco's face are the sand-filling ports for the leading wheels.

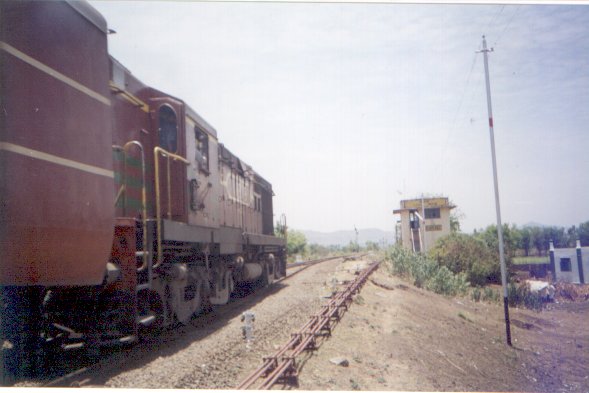

Photo 3: This is the moment we have all been waiting for: the famous Alco exhaust!
