Simply amazing

Posted by Onkar on 2011 Feb 10 04:35:33 +0000

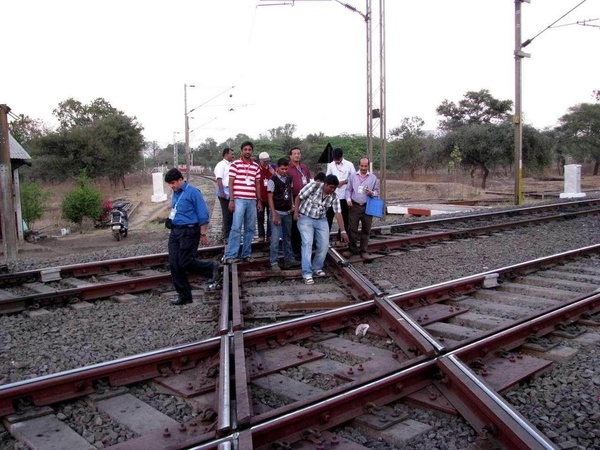

Karan - CR had been facing lots of issues when these diamond crossing at BSL and the one at Nagpur were on wooden sleepers, and each rails used to cut at same level, and both the corridor, i.e. the main and the freight lines were all rated at 10kmph, due to this.This was same as provided by you in the link. Moreover standard concrete sleepers were not available for these layouts. Its then that CR came up with its own design and specially manufactured concrete sleepers, that could accomodate such layouts. And the innovation that CR came up is of the freight line, at slighter elevation over the main lines, as you see in this pic, so this increased the speed for main lines whic are at same level, at 75kmph here while retaining 10kmph for the freight line. Now I am not bothered about how common these layouts are in the rest of the world, but in IR, I would definitely say, AFAIK, a diamond crossing layout where one track cuts another n angle of around 60-65 or 85-90 degres, is not common anywhere on IR. You may...

Karan - CR had been facing lots of issues when these diamond crossing at BSL and the one at Nagpur were on wooden sleepers, and each rails used to cut at same level, and both the corridor, i.e. the main and the freight lines were all rated at 10kmph, due to this.This was same as provided by you in the link. Moreover standard concrete sleepers were not available for these layouts. Its then that CR came up with its own design and specially manufactured concrete sleepers, that could accomodate such layouts. And the innovation that CR came up is of the freight line, at slighter elevation over the main lines, as you see in this pic, so this increased the speed for main lines whic are at same level, at 75kmph here while retaining 10kmph for the freight line. Now I am not bothered about how common these layouts are in the rest of the world, but in IR, I would definitely say, AFAIK, a diamond crossing layout where one track cuts another n angle of around 60-65 or 85-90 degres, is not common anywhere on IR. You may point out pls, if you know of any other such location. I also have read one official document on CR explaining about this diamond crossing issue and how CR dealt with it, and how RDSO did trials and certified it. Will try posting the link for your reference. And once more, I request you to go through the link that you provided and the photo, and compare both. Both are entirely different. The old layout was exactly as in the link you provided. And the one here on our server, is the innovation done by CR to eliminate the speed restriction on main line.

Posted by Vijay Aravamudhan on 2011 Feb 10 04:06:16 +0000

A suggestion for the next convention;

I noticed that there was a video camera too in presence.

Each delegate / participant in the convention could stand in front of the camera, identify himself by name and location, one by one?

I for one would say, "Uttam Padukone, Hartford, Connecticut, USA" and move on and Ashish could say, "Ashish Kuvelkar, Pune, India" and move on.

At the end of it all, the compilation could be labelled as IRFCA Convention 2012 and shared on our website.

Posted by Uttam Padukone on 2011 Feb 09 21:31:13 +0000

Picture perfect ! By the way , who took the photo ?

Posted by Chaitanya Gokhale on 2011 Feb 09 18:15:51 +0000

Vijay, can you please elaborate what is special about this diamond crossing developed by CR? At first glance it looks similar to diamond crossings used all over the world, for example, this- http://upload.wikimedia.org/wikipedia/commons/0/0b/Diamondcrossing.jpg

Posted by Karan Desai on 2011 Feb 09 17:33:10 +0000

This is really great.

Posted by Arzan Kotval on 2011 Feb 09 13:09:09 +0000

Nice wide angle shot.

Posted by Arzan Kotval on 2011 Feb 09 13:07:45 +0000

The double line headed to the right of the picture is the Bhusaval - Nagpur main line. The single line seen vertically in this picture connects the Itarsi line to the yard.

Posted by Dr.Jitendra Mulky on 2011 Feb 09 09:13:45 +0000
