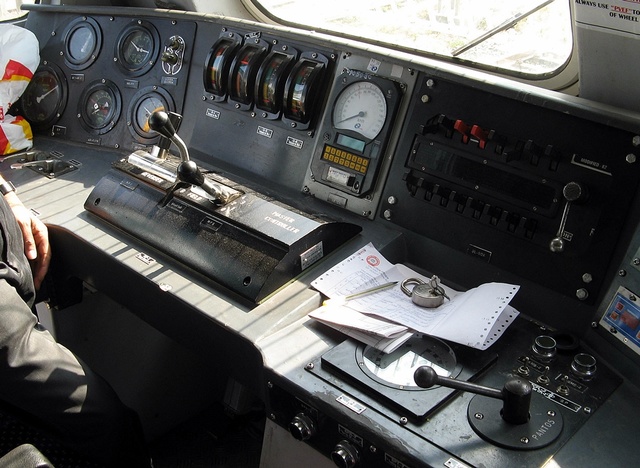

Driver's desk of BHEL WAG7 showing the new type of master controller provided in these locos.The layout of the cab and controls is quite ergonomic especially the speedometer's location which will ensure that the driver does not have to crane his neck to watch the speed.Also note the increased leg space for the driver due to the flat MP. (Khalid Kagzi)

Date: 2009-12-28
Owner: Khalid Kagzi
Size:
Full size: 1024x749
Last
First •
BHEL WAG7 Driver's Desk
Comments
I have heard that these locos perform better too.....
Posted by Zubin J Dotivala on 2010 Jul 01 17:13:01 +0100
Superb turnout from BHEL
Posted by Sandeep Mohan on 2010 Jan 27 03:14:21 +0000
Finally a control desk layout that I've been wondering why CLW never could design! Good work BHEL. CLW has a lot left to learn. Would it be possible to see more pics of this cab? Some controls and other details are not visible.
Posted by Alok Patel on 2009 Dec 28 16:39:54 +0000
Samar the piano style horn lever is in WCG-2 loco as well !!
Posted by Chaitanya Gokhale on 2009 Dec 28 14:38:31 +0000
Nice set of pictures Khalid. I liked BHEL retaining the piano style horn lever.
Posted by Samar on 2009 Dec 28 14:24:03 +0000
