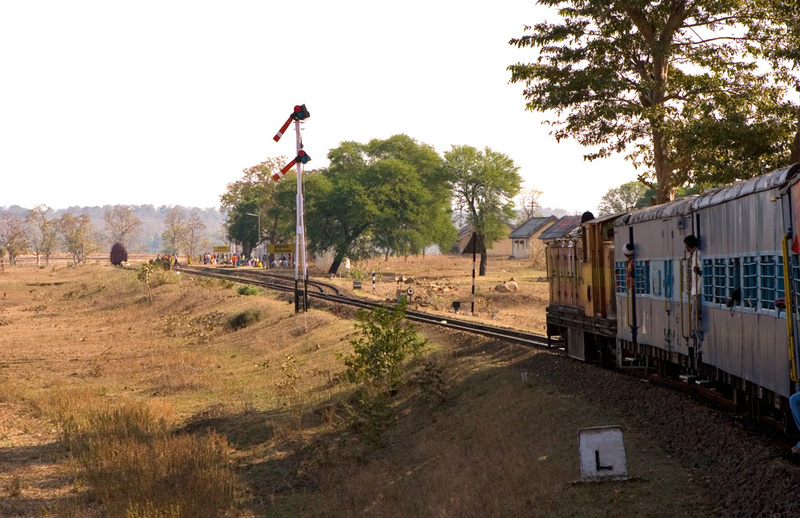

The are two types semaphores on single mast. The upper one being the "Home" signal and the lower one being the "Warner" signal, which has its arm painted in yellow and has a ">" cut on the arm. If both the Home and Warner are down, that means the train does not have to stop at the station and it can proceed till the next block section. The "directional signals", that is multiple semaphore signals on the same "T" mast indicate the loop line the train is going to. Then you have the "Co-acting" signals, which like home and warner are on the same mast but are operated via single lever. These are installed behind the FOB for better visibility for the train driver. The signal here, neither serves the purpose of "Home and Warner", not directional. I am not sure if it is a "co-acting signal".

Posted by Anurag Bist on 2012 Feb 29 20:35:32 +0000

There is a point just after the semaphore. I suppose this might be acting as proceed signal to a particular train if both lines are occupied.

Posted by Anant K Singh on 2012 Feb 28 05:18:31 +0000

nice pic!!

Posted by Bhaveen Patel on 2012 Feb 27 16:53:17 +0000
