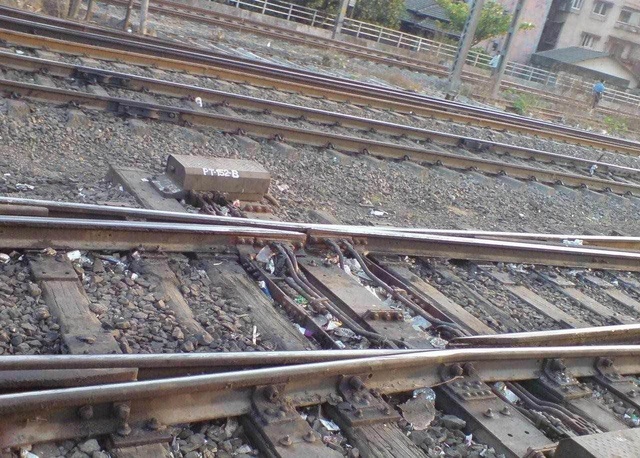

Switch in Diamond? - A Unique setup found only at Thane Station outer of Central Railway Mumbai section, not found anywhere on IR - 2 switches inside the diamond crossing layout. They have never ever been used till today. Even if its used, only EMUs will be able to cross and not more than at 4kmph, else, it will defintely derail as the angle will be too sharp. The switches change only when a semifast train changes over to slow corridor. - by Vijay.A
This is a movable switch diamond. It's more common than you would imagine. Although the switches mean more maintenance but these work quite well as there is no gap at the crossing, over which the wheel moves. A similar arrangement is the swing nose...
This is a movable switch diamond. It's more common than you would imagine. Although the switches mean more maintenance but these work quite well as there is no gap at the crossing, over which the wheel moves. A similar arrangement is the swing nose crossing used in high speed turnouts these days.
Posted by Rajeev Shrivastava on 2008 Apr 07 10:31:15 -0400
I have seen switch on a diamond crossing many times. Just before HWH station there are quite a few of them. The speed restriction on the diamonds before HWH is 5 kmph due to danger of derailment.
Posted by M S M Saifullah on 2008 Apr 07 02:55:52 -0400
By the way, the switch seems to be in regular use. Does the switch enable trains on the straight track to run at top speed? The restriction of 4 kmph for the crossing track seems too low.
Posted by Alok Patel on 2008 Apr 07 02:01:33 -0400
Excellent work! This should be the first ever photograph of a switch on a diamond on the server or for that matter, even anywhere else.
Posted by Alok Patel on 2008 Apr 07 01:53:47 -0400
Comments
Hi I think it the KYN end side of TNA. If yes, then it is in use. I think it is connection of FAst Dn line to Slow Dn line.
Posted by Ranjeet Ramaswamy Iyer on 2008 Apr 08 10:37:13 -0400
This is a movable switch diamond. It's more common than you would imagine. Although the switches mean more maintenance but these work quite well as there is no gap at the crossing, over which the wheel moves. A similar arrangement is the swing nose...
This is a movable switch diamond. It's more common than you would imagine. Although the switches mean more maintenance but these work quite well as there is no gap at the crossing, over which the wheel moves. A similar arrangement is the swing nose crossing used in high speed turnouts these days.
Posted by Rajeev Shrivastava on 2008 Apr 07 10:31:15 -0400
I have seen switch on a diamond crossing many times. Just before HWH station there are quite a few of them. The speed restriction on the diamonds before HWH is 5 kmph due to danger of derailment.
Posted by M S M Saifullah on 2008 Apr 07 02:55:52 -0400
By the way, the switch seems to be in regular use. Does the switch enable trains on the straight track to run at top speed? The restriction of 4 kmph for the crossing track seems too low.
Posted by Alok Patel on 2008 Apr 07 02:01:33 -0400
Excellent work! This should be the first ever photograph of a switch on a diamond on the server or for that matter, even anywhere else.
Posted by Alok Patel on 2008 Apr 07 01:53:47 -0400
