Dimensions of Rolling Stock — 1971

Also see dimensions for track formations, and 1929 standards for rolling stock dimensions, as well as the rolling stock FAQ.

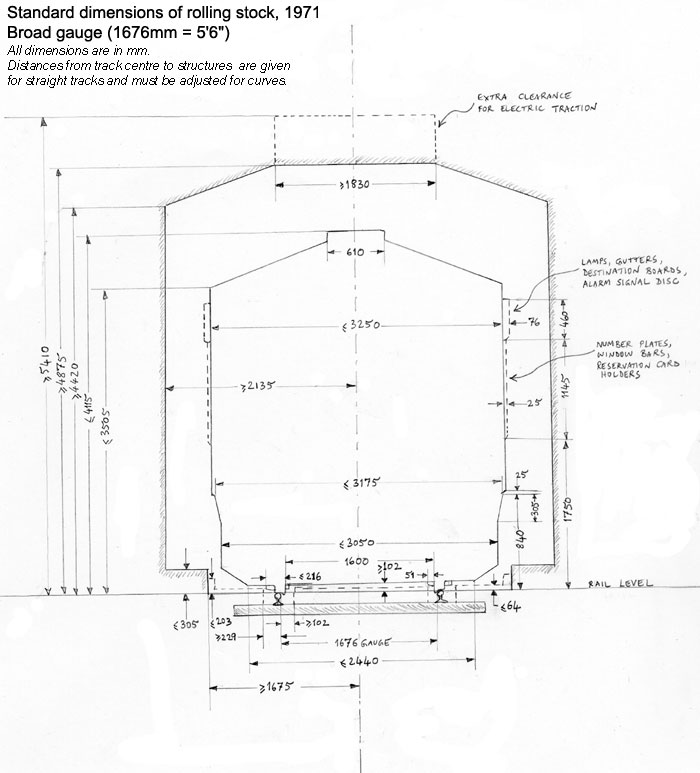

The diagram below is adapted from an IR publication of the 'Schedule of Moving Dimensions'. It shows the 1971 standards for maximum and minimum dimensions of rolling stock.

Rolling Stock Dimensions - 1971
